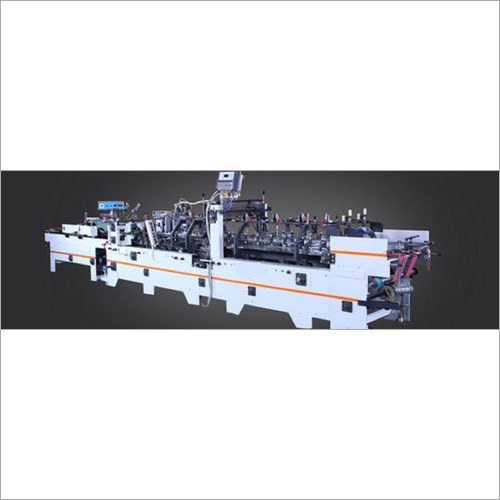

Semi Folder Gluer Machine

In accordance with industry standards, we are engaged in providing an exclusive gamut of Semi Folder Gluer Machine. It is used for applying the glue on the cardboards, paper and corrugated sheets. This is manufactured using the best quality materials and contemporary technology under the stern surveillance of our team. Moreover, we provide this Semi Folder Gluer Machine in several specifications and can also be customized as per the information provided by our customers.

• Sturdy construction

• Precisely engineered

• One minute quick order change.

• Easy operation, unnecessary for training.

• Carton gluer min size 240 mm

• Optimum functionality

Semi Folder Gluer Machine offered provides for one minute quick order change support as well as at the same time meets the requirements of easy operations. The system is capable of handling minimum carton gluer size of 240 mm with maximum size (L + W) X 2mm 2800. With operational speed of 60m/min, the system make use of reliable and high performance based electric spare parts of SIEMENS and OMRON company so as to assure of longer service life and stable running performance.

Specification:

• Max. size(L + W) X 2mm 2800

• Min. size(L + W) X 2mm 340

• Max. size(W + H) X 2mm 1515

• Min. size(W + H) X 2mm 240

• High of feeder 900mm

• Power 4Kw

• Weight 2300kgs

• Speed 60m/min

• The electric spare parts use SIEMENS and OMRON, to keeping long life use and running

• stable.

• Main motor and glue head import from Taiwan,

• Use more strong material on the machine, so the weight of machine heavy more 300kg.
